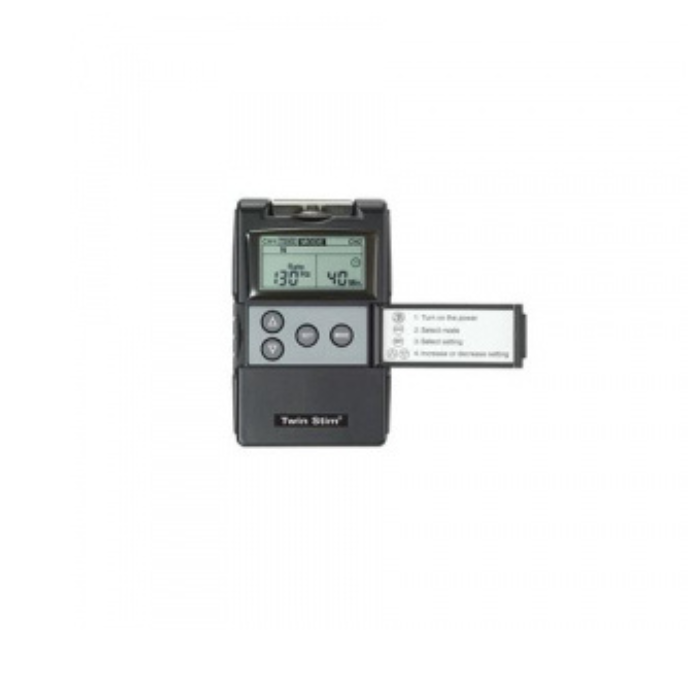

Our most popular digital electrotherapy unit. The twin stim 2nd edition is an exact combination of our TENS 7000 and EMS 7500, which gives the user the choice of five-modes of TENS and two-modes of EMS. Features include, dual channels, seven-modes, timer, patient compliance meter, new stronger 100 mA output, safety amplitude cover, sturdy metal belt clip and rubber side railings for maximum handling.
Five-TENS modes - burst/normal/modulation/SD1/SD2
Two-EMS modes - synchronous, alternate
Patient compliance meter can store up to 60 sets of operation manual
Pulse width - 50 to 300 s, adjustable
Pulse rate - 2 to 150 Hz, adjustable
1 to 8 sec pulse ramp
100 mA peak into 500 phm load pulse amplitude
2 to 90 sec contraction time
Relaxation time - 2 to 90 s
Wave form - asymmetrical bi-phase square pulse
Timer - 1 to 60 min or continuous
DS2202 Electrotherapy Unit, Battery Power Source, 2 to 150 Hz ; Compass Health Brands ; ROSCOE MEDICAL ; DS2202 ; Electrotherapy Systems ; DS2202
